High Zirconium Ceramic Fiber Modules Thermal Insulating With Anchor System

Brand Name : FS

Model Number : FS-4845

Certification : SGS,CE

Place of Origin : China

MOQ : MOQ: 100PCS

Price : 279USD/ton

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000ton/month

Delivery Time : 15 working days

Packaging Details : carton, tray

Color : white

Chemical composition : Al2o3

Working temperature : 1350℃

Size : customized

Packing : PE

Application : Reformer furnace roof and walls.

Feature : Excellent mechanical strength ,built-in anchor

Density(kg/m3) : 160-300

Contact Now

High Zirconium Ceramic Fiber Modules Thermal Insulating With Anchor System

Product Description

Ceramic fiber module is made of Hengrui ceramic fiber blanket which is folded or cut by experienced professional technicians. It use special equipments for producing module to confirm the precise dimensions and keep smooth surface of module, designed for various of thermal furnaces. The products have some characteristics such as reliable quality, quick installation, superior insulation properties.
Ceramic fiber module use the enhanced M-type anchors, which have greater strength, closer to the cold face. It can make sure the strength in high temperature. The fixed link was welding together with the high quality heat-resistance steel and stamping butterfly plate. The two round fixed link were embedded in the module system, enlarged the bearing area and ensured the firm of anchor system.

High Zirconium Ceramic Fiber Modules Thermal Insulating With Anchor System

Features

1. Low bulk density,low thermal conductivity.
2. Resistance to heat-shock, ability to resist the scouring of airflow.
3. Excellent mechanical strength ,built-in anchor, safety performance.
4. Easy to install. after installing the lining form a seamless space, good insulation effect.

Application

Boiler insulation,Stack linings,Refining and Petrochemical,Ethylene furnace roof and walls,Pyrolysis furnace lining,Reformer furnace roof and walls.

Parameters

Description	STD MODULE	HP MODULE	HZ MODULE
Chemical Composition (%)
Al2O3	43-45	44-46	35-36
SiO2	54-56	53-55	49-50
Density(kg/m3)	160-200	160-200	160-200
Classification Temperature(℃)	1260	1260	1430
Linear Shrinkage after after heating(%)	1000℃x24h≤2.5	1100℃x24h≤2.5	1350℃x24h≤3.5
Thermal Conductivity(W/m.k)
400℃	0.090	0.101	0.118
500℃	0.119	0.120	0.149
600℃	0.152	0.175	0.172

Product Tags:

ceramic fiber products

ceramic fiber insulation modules

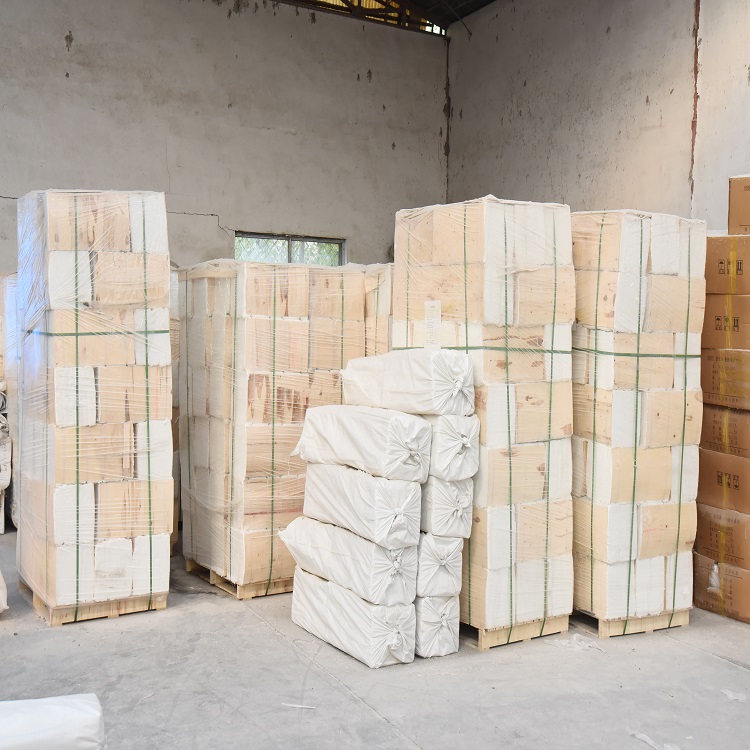

High Zirconium Ceramic Fiber Modules Thermal Insulating With Anchor System Images
