Ventilated Facade Tile Terracotta Panels For Cladding Wall System
Introduction
(A) Open Systems, heat & sound insulation
Terracotta panel adopt open systems dry-hanging installation help to protect architectural main structure erosion from inclement weather and air pollution, to prevent the wall cladding producing sediment, keeping curtain wall beautiful. At the same time this installation way can effectively reduce the heat transfer coefficient, effectively improve the acoustic behavior of building walls. The whole system can be heat insulation, sound insulation, ventilation, humidity insulation effect, also can effectively improve the indoor temperatures in summer, eliminating the thermal bridge effect and save energy consumption.
(B) Waterproof & anti-collision design, Anti-pressure & seismic
Install principle carries on spliced design according to principles of equal pressure rain-screen. It uses a special design of EPDM tape between the sub-sutural of the two interfaces. This way can effectively reduce the intrusion of rain, prevent terracotta panel from lateral displacement, and prevent collisions between adjacent terracotta panels. At the same time, after improvement terracotta panel system improves the terracotta panel wall press resistance, earthquake protection up to 10 degrees or more, particularly suitable for buildings which require resisting wind pressure and seismic.
(C) Add installation gasket, single piece can be replaced
Between terracotta and clamp parts, clamp and rail are separated by flexible insulating gasket, to improve the anti-seismic of the system, to avoid the solution of electrolytic corrosion among the different metal material, and can also eliminate the noise and distortion. And broken terracotta panel can be physical damage without dismount the installed terracotta panel, single piece can be replaced easily.
(D) Sophisticated workmanship, back ventilation
The processing of terracotta panel uses advanced technology control, surface flat and dimensional stabilization, can meet the maximum design needs of wall closed edge and closed ends. No matter the screen or corners or other parts of, it can maintain the vertical of curtain wall facades coherent, natural and beautiful. Meanwhile, humidity of building can be taken away by flowing air behind the wall space to avoid producing condensation water and keep the exterior walls dry.
Application

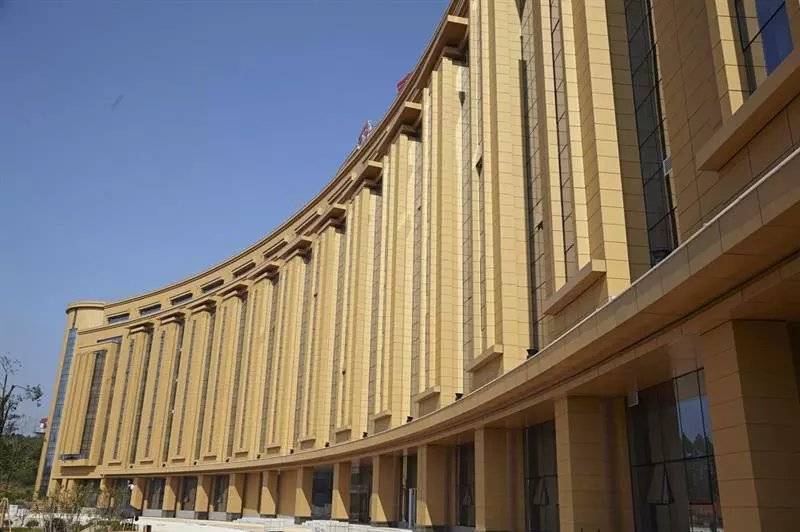

Constructional exterior curtain walls.Decorative renovation for storey-added old buildings. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies.Advertisement board, display platforms and signboards. Wallboard and ceilings for tunnels;. Raw materials in industrial purpose. Materials used for vehicle and boat.
Specification
| Inspection Items | Tchnical Parameter (Thickness:18mm) | Reference Standards |
| Water Absorption Rate | 3≤average value≤8% | JC/T 1080-2008 |
| Dry Weight | ≤33kg/m2 | ---- |
| Freezing Resistance | No Crack or Flake after 100 times test in -30°C~30°C | JC/T 1080-2008 Q/JHTJ001-2009 |
| Breakage Strength | ≥2.98KN | JC/T 1080-2008 |
| Rupture Modulus | ≥14MPa | JC/T 1080-2008 |
| Poisson Ratio | 0.33 | ISO17561 |
| Modulus of Elasticity | 0.305x105 | ISO17561 |
| Fire Resisting Property | A Degree | JC/T 1080-2008 |
| Low Concentration Acid and Alkali Resistance | UA Degree | GB/T4100-2006 |
| High Concentration Acid and Alkali Resistance | ULA Degree | GB/T4100-2006 |
| Radio-Activity | AI Degree | GB6566-2001 |
| Seismic Behavior | ≥10 | GB/T18575, GB5011 |
| Wind Load | Positive Pressure: 5.0KPa Negative Pressure: 5.0KPa | GB/T21086-2007 |
| Sound Proof | Reduce Noise more than 9db | ---- |
| Thermal Shock Resistance | No crack or explode after 10 times test | JC/T 1080-2008 |
| Bending Strength | 13.5MPa | GB/T4741 |
| Density | 2.0--2.4g/cm3 | ---- |
| Expansibility | 0.02mm/m | GB/T4100-2006 |
| Coefficient of Heat Conductivity | 0.264W/m.K | JC/T 1080-2008 |
| Surface Quality | No Flaw when see from 1 meter away | JC/T 1080-2008 |
Plane Deformation
Capacity | Fifth Degree | GB/T21086-2007 |
| Hanging Strength | average value≥1.34KN | GB/T9966.7-2001 |
| Stain Resistance | 3 Degree | GB/T4100-2006 |
| Linear Thermal Expansion | 5.8x10-6C-1 | GB/T4100-2006 |
